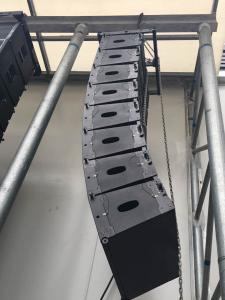

W-210B&W-210BP is a line array system which is made of two 10"neodymium woofers, one 3"titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required.
| Model | W-210B & W-210BP(Active) |
| Type | Active Line array system |
| Frequency Response | 60Hz-20KHz±3dB |
| Power handling | LF 700W(RMS)1400W(PEAK) |
| | HF 100W(RMS)200W(PEAK) |
| Power amp | 900W/8ohm (W-210BP) |
| Amplifier type | Switching power amp, class D circuit |
| Other functions | Built-in crossover(W-210BP) |
| Sensitivity | LF 101dB(1W1M) |
| | HF 109dB(1W1M) |
| Max S.P.L | LF 127dB(PEAK/1M) |
| | HF 129dB(PEAK/1M) |
| LF section | 2×10"(260mm) neodymium woofer |
| | 75mm(3in)coil |
| Nominal impedance | 8 ohm |
| HF section | 1×3" neodymium compression driver |
| | with 75mm titanium diaphragm |
| Nominal impedance | 8 ohm |
| Output section | 2-channel |
| Dispersion pattern | 110°H×10°V |
| Finish | Water-proof,wear-resistant textured |
| | black paint |
| Array design | Arrays of less than 3×W-210B will |
| | provide poor dispersion control and |
| | are neither recommended nor supported |
| Speaker cables | LF 1(+)1(-) HF 2(+)2(-) |
| Rigging system | Please refer to the W-210B user's |
| | manual before any operation |
| Input connectors | 2×NL4MP speakon |
| Recommend crossover | LF 70Hz-2KHz |
| | HF 2KHz-20KHz |
| Dimensions | 737 * 288 *415mm(W x H x D) |
| Package dimensions | 810 * 360 * 480mm/0.14cbm |
| Enclosure | Birch plywood |
| Net weight | 31kg (W-210B) 34kg(W-210BP) |
| Gross weight | 31kg (W-210B)35kg (W-210BP) |
CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !
Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.
Brand Promises:
To get the best goods with least money is not only customers favorites,but also CVR's target.
- Quality Wood Enlosure: Birch Plywood and Plywood.
- Detailed cutting and Design: Proffessional design for driver,frequency divider,tweeter, horn and cabinet.
- Environment protection spray-paint: nontoxic water paint which is environment protected and werable.
- CE&RoHS certificate: for all products
- Strictly test before delivery: All products are under the examination of our engineer team before dilivery.
- Strong packing: Quality carton boxs with firm belt and flight cases are required.
- Fast lead time: Sample order in stock and normally within two weeks for bulk production.
- Good After-sale service: All products have one year warranty and lifetime follow-up service.Parts will be free from maintenance within warranty period. Any inquiries will be replied within 24 hours.
